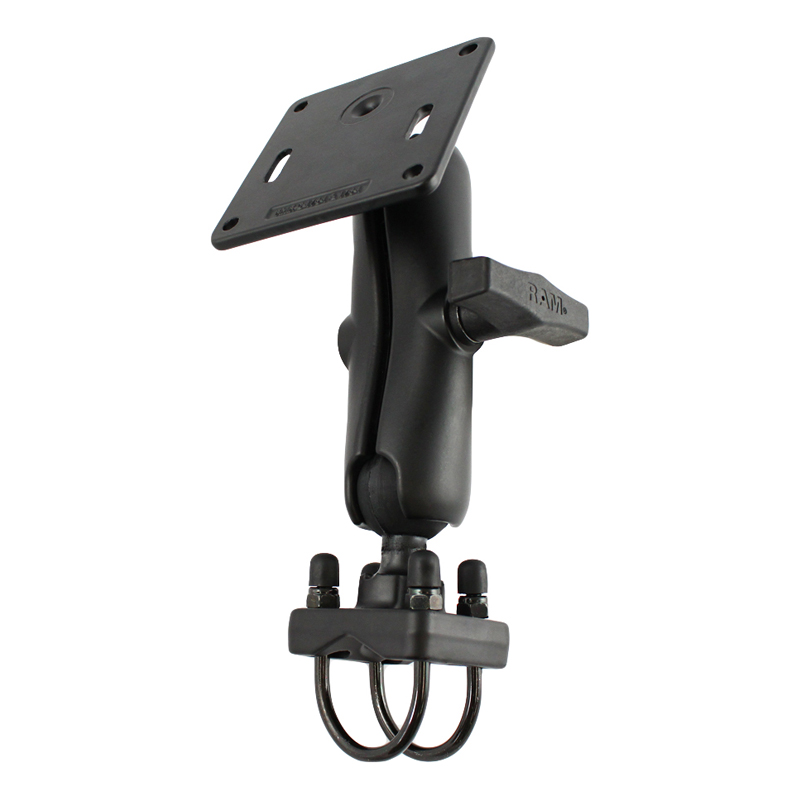

Product information "Ram Mount double bracket clamp holder 1 to 1.25 inches C Arm aluminum plus VESA 75x75"
The Ram Mount C-Arm Alu VESA Holder 75x75 for Monitors, Tablets offers a robust and flexible mounting solution for a variety of applications. Made from high-quality aluminum, this holder guarantees exceptional stability and durability, even in demanding environments. The innovative C-Arm System allows for quick and easy adjustment of the viewing angle, which is especially advantageous in areas such as warehouse logistics and mobile data collection.
Thanks to the integrated VESA plate with 75x75 millimeter hole pattern, the holder is compatible with numerous monitors, tablets, and other electronic devices, highlighting its versatility. Whether in forklifts, tractors, wheelchairs, or municipal vehicles, this holder ensures a secure and stable mounting. Installation is simple: the C-Arm clamp is placed around the pipe, secured with screw nuts, and the ends are protected by rubber caps.
With a load capacity of up to 1.81 kg, the holder is suitable for a wide range of devices and applications. The set includes all necessary components for immediate installation, including a C-Arm clamp, rubber caps, and a screw set. Whether for professional use or personal projects, the Ram Mount C-Arm Alu VESA Holder 75x75 for Monitors, Tablets is the reliable choice for any application.
Our Opinion

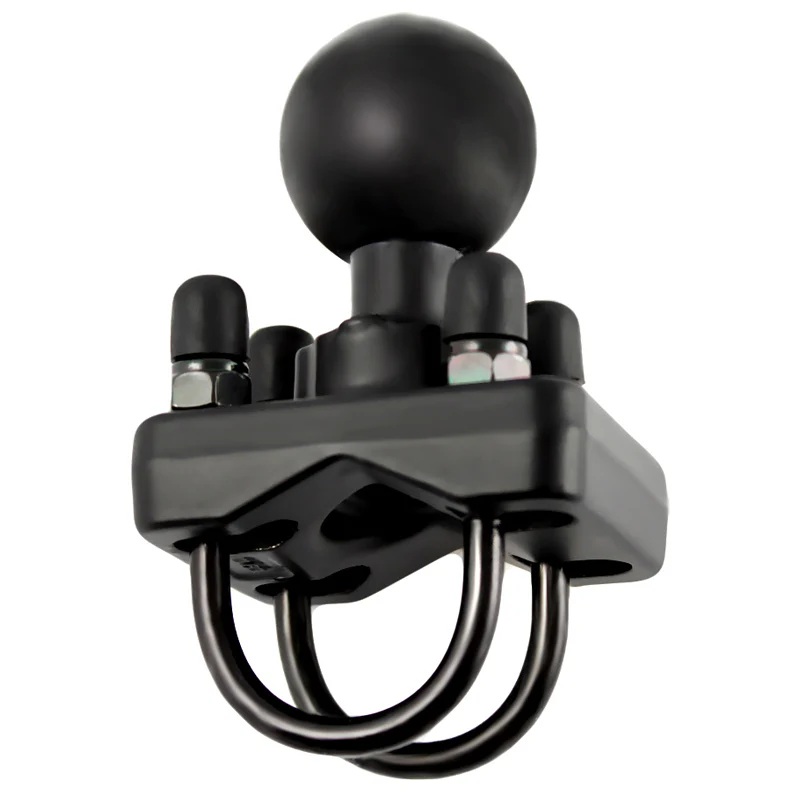

This mount is well suited to attach monitors, PDAs, rugged tablets to pipe systems, for example to lift wagons, steering bars, tractors or the like. The clamp base consists of a plate with a ball and V-shaped notch as well as two stainless steel clamps that are placed around the pipe to be encompassed and secured with screw nuts. The exposed ends are protected by plastic caps. The base fits all pipes within the dimensions specified below.

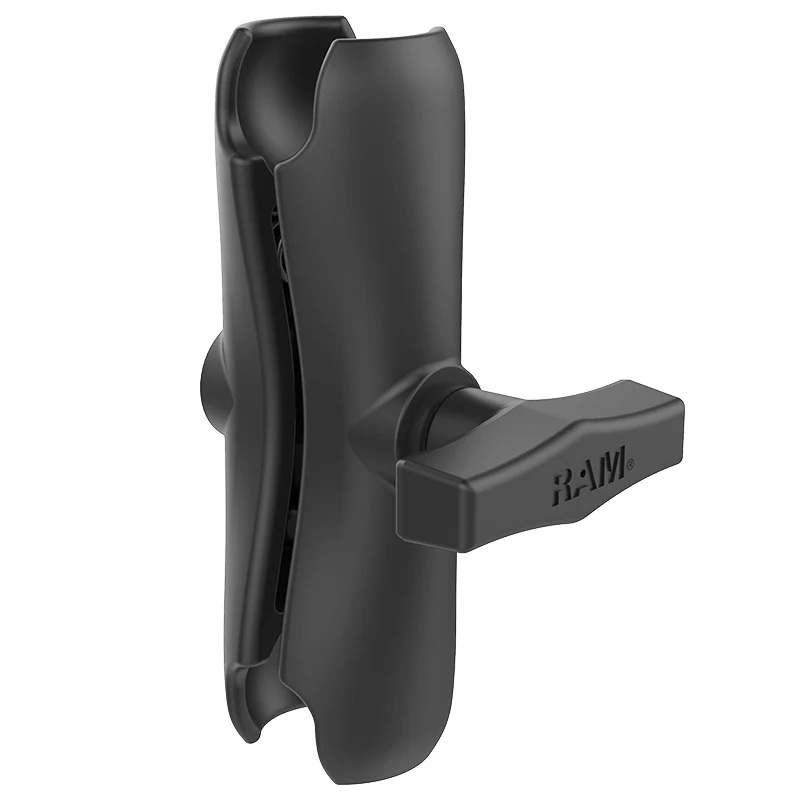

The VESA plate with the 75x75mm standard hole pattern is compatible with numerous monitors and other electronic devices, but also with other mounting elements from RAM MOUNTS with the same hole pattern. The mount is complemented by a middle connecting arm of the C-System. It connects the plate and the clamp together. The mount can be adjusted as desired at the two ball joints.
Mount from the stable C-System. Also holds heavier devices like monitors.
Very easy to operate. The holder can be adjusted at will at the two ball joints. Screw is used for loosening and locking.
High-quality and durable mount made of resilient marine-grade aluminum.
Simple and without much effort. Push the balls into the bushings of the arm, adjust and fix. Adjust the folding clamp to the desired pipe diameter and tighten the nuts.

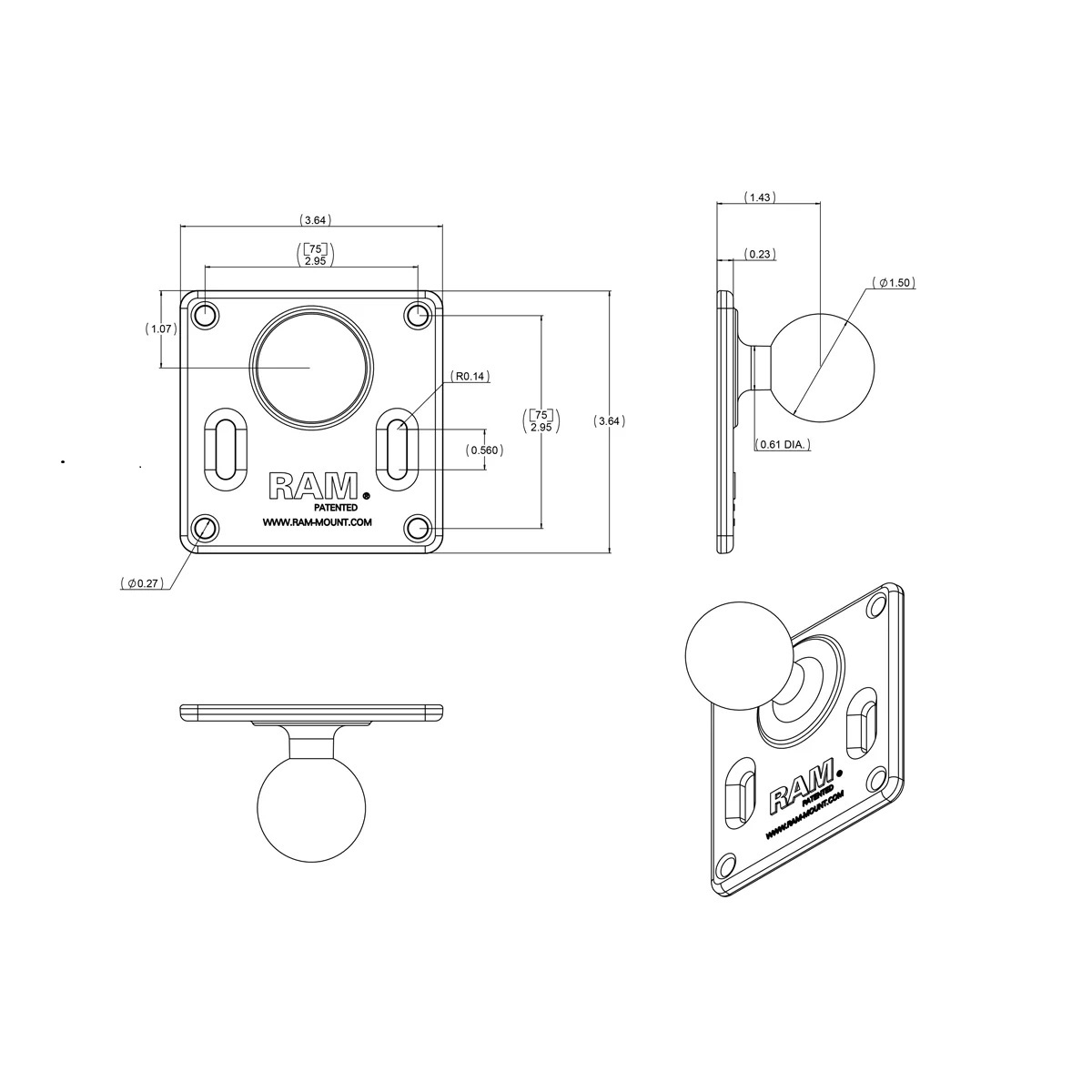

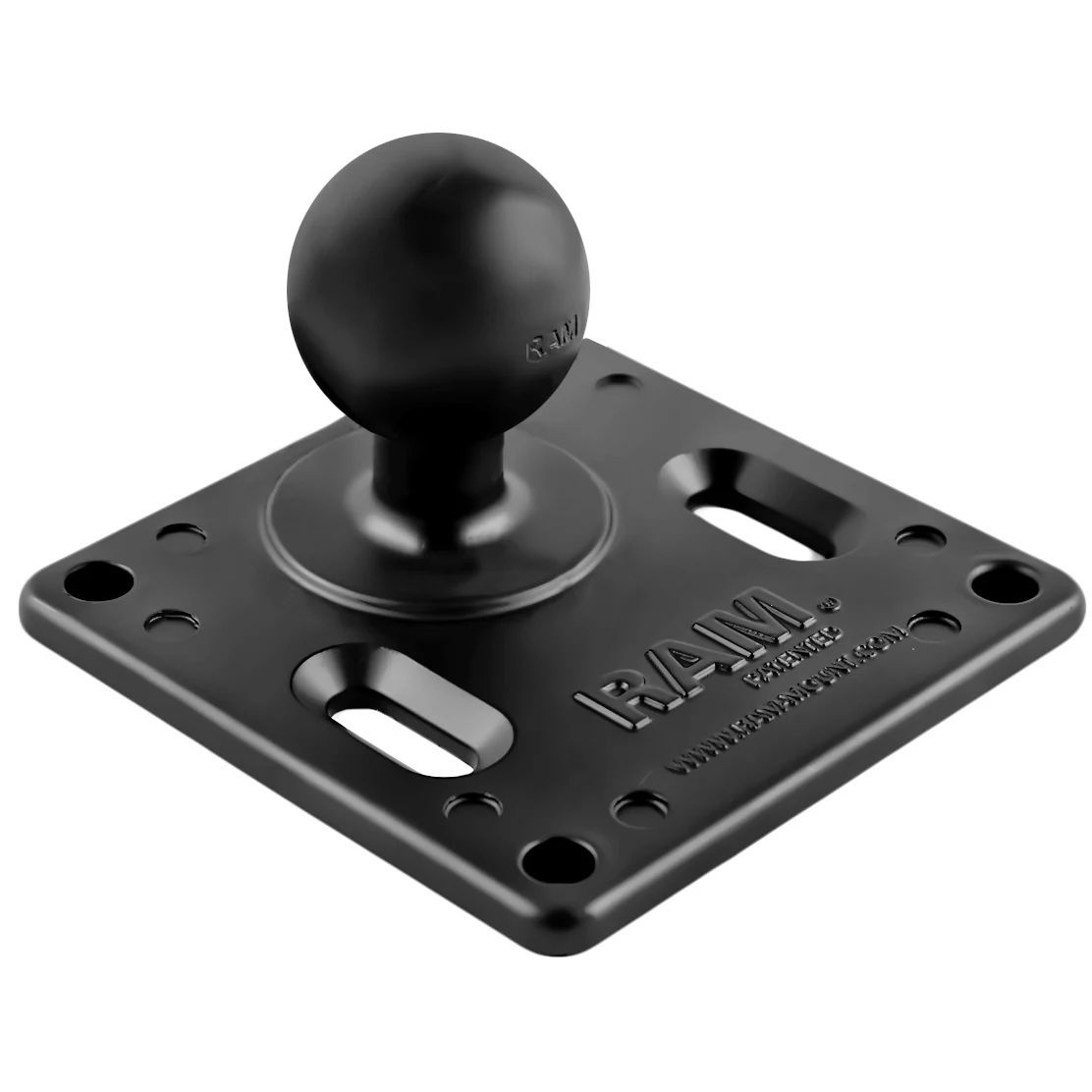

The VESA plate with the 75 by 75 mm standard hole pattern is compatible with numerous monitors and other electronic devices.
| Belastbarkeit: | Für Geräte bis 1500g, Standard Duty |
|---|---|
| Lochmuster: | 75mm x 75mm VESA |
| Material: | Aluminium (Marine grade) |
| Systemgröße: | C - 1,5" - 38,1mm - Belastbarkeit 1,81 KG |
| Geeignet für: | VESA 75 für schwere Geräte und Bildschirme |
| Basiselement auswählen: | Doppelbügelschelle |
| Armlänge: | Standard Ausführung |
| Item dimensions and key figures |
|---|
| Measurements for component: Doppelbügelschelle Edelstahl für Rohre von 1-1.25" (C-System) |
|---|
| Measurements for component: Socket-Arm mittellang aus Aluminium, C-System |
|---|
| Measurements for component: VESA-Platte 75 x 75 mit C-Kugel |
|---|
| Belastbarkeit: | Für Geräte bis 1500g, Standard Duty |
|---|---|
| Lochmuster: | 75mm x 75mm VESA |
| Material: | Aluminium (Marine grade) |
| Systemgröße: | C - 1,5" - 38,1mm - Belastbarkeit 1,81 KG |
| Geeignet für: | VESA 75 für schwere Geräte und Bildschirme |
| Basiselement auswählen: | Doppelbügelschelle |
| Armlänge: | Standard Ausführung |
| Item dimensions and key figures |
|---|
| Measurements for component: Doppelbügelschelle Edelstahl für Rohre von 1-1.25" (C-System) |
|---|
| Measurements for component: Socket-Arm mittellang aus Aluminium, C-System |
|---|
| Measurements for component: VESA-Platte 75 x 75 mit C-Kugel |
|---|
